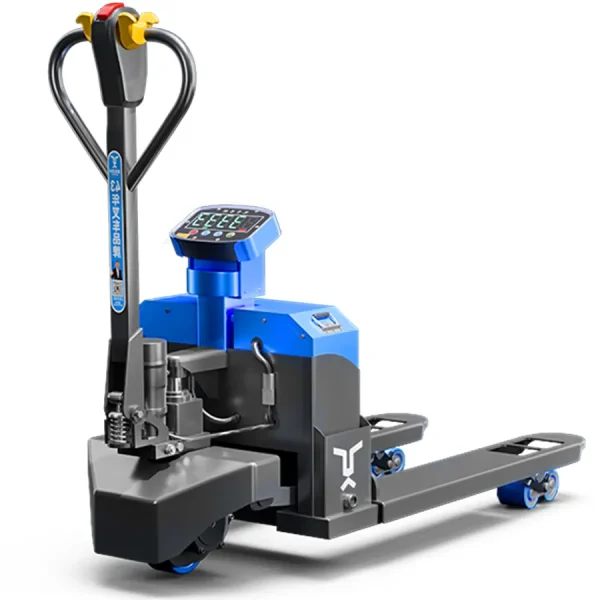

Jinglai series electric pallet trucks are a new choice for medium/small cargo handling operations of 1000-5000kg.
The compact chassis structure, light weight and small turning radius make it more flexible and practical in material handling and logistics transportation. 1. Multifunctional intelligent control handle, including throttle, reversing safety button, descent release lever and power indicator light, and has the function of switching driving mode when the handle is upright. 2. The stacker adopts an integrated key switch design, and the emergency power-off button can protect the electrical system in the non-working state, save electricity and ensure safety. 3. The pallet truck is equipped with high-performance Jinglai controller and drive motor, as well as high-quality polyurethane tires, which are durable. The layout is scientific and reasonable, the performance is excellent, and the maintenance is convenient. 4. The wide field of view and high-quality forks, sufficient remaining lifting capacity and perfect lifting field of view ensure excellent operating experience and greatly improve work efficiency. 5. The chassis is reinforced with high-quality steel to ensure durability and safety of high-altitude operations.
Product Specification
|
Features
|
1
|
Model
|
|
SK-Weighing
|
|
2
|
Power type
|
|
Fully/Semi electric
|
|
|
3
|
Operation mode
|
|
walk-away
|
|
|
4
|
Rated load
|
KG
|
0-3000
|
|
|
Weight
|
5
|
Weight (including battery)
|
KG
|
≈200
|
|
Wheels
|
6
|
Wheel type
|
|
Front/rear PU wheels
|
|
7
|
Drive wheel size (diameter x width)
|
MM
|
/
|
|
|
8
|
Load-bearing wheel size (diameter x width)
|
MM
|
/
|
|
|
9
|
Drive/load-bearing wheel
|
|
1/4
|
|
|
Basic dimensions
|
10
|
Maximum height of forks
|
MM
|
200
|
|
11
|
Minimum height of forks
|
MM
|
85
|
|
|
12
|
Outer distance between forks
|
MM
|
685/550
|
|
|
13
|
Inner distance between forks
|
MM
|
365/230
|
|
|
14
|
Fork length
|
MM
|
1200
|
|
|
15
|
Fork width
|
MM
|
180
|
|
|
16
|
Fork thickness/material
|
MM
|
5/Manganese steel
|
|
|
17
|
Vehicle width
|
MM
|
685
|
|
|
18
|
Vehicle height (including handle)
|
MM
|
1235
|
|
|
19
|
Vehicle length
|
MM
|
1800
|
|
|
20
|
Turning radius
|
MM
|
/
|
|
|
Performance
|
21
|
Driving speed (full load/empty load)
|
KM/H
|
3/5
|
|
22
|
Climbing (full load/empty load)
|
%
|
8/16
|
|
|
23
|
Brake type
|
|
Electromagnetic brake
|
|
|
Motor/battery
|
24
|
Drive motor rated power
|
KW
|
1.5
|
|
25
|
Lifting motor rated power
|
KW
|
0.6
|
|
|
26
|
Battery type
|
|
Lead acid/lithium battery
|
|
|
27
|
Battery capacity
|
V/AH
|
48V20
|
